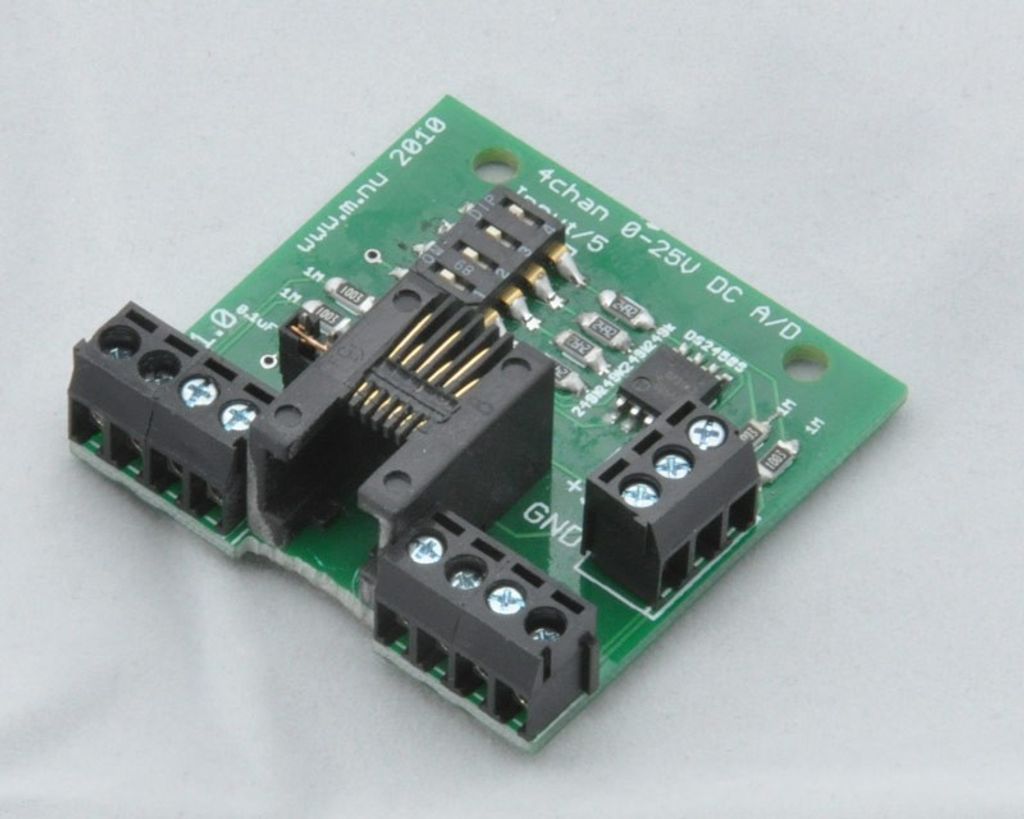

AD Converter 4 channels 0-25V DC

The AD converter with 4 channels can be used to measure DC voltages between 0-25V. The card is built around the circuit DS2450S+. On each AD channel, there is a voltage divider that can be activated by changing a dip switch. When the voltage divider is activated, the incoming voltage is divided by 5. (To obtain the actual voltage with the voltage divider activated, multiply the measured voltage by 5.) The card is connected to your 1wire network with either an RJ12 connector or screw terminals. The card can be powered with +5V DC. If you want to do that, you need to bridge the two pins next to the RJ-12 female connector. The card fits in a plastic box medium, which is purchased separately.
