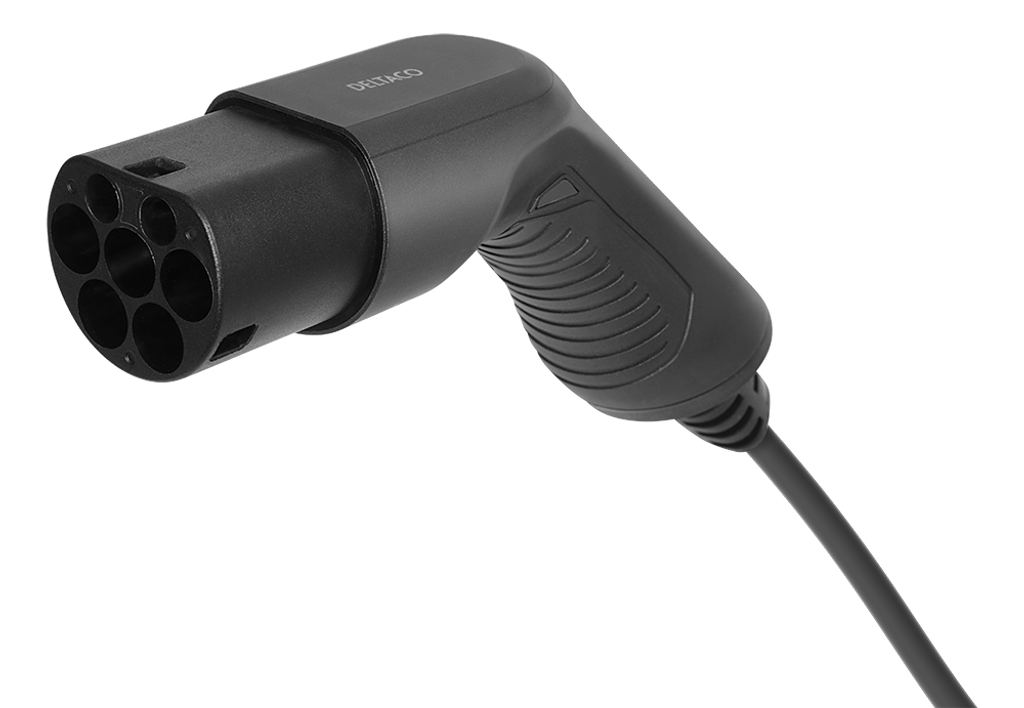

E-Charge charging cable, type 2 to type 1, 1 phase, 16A, 3.6KW, 7m, black.

DELTACO e-Charge charging cable, type 2 to type 1, 1 phase, 16A, 3.6KW, 7m, black

The DELTACO e-Charge EV-1107 charging cable fits all vehicles with a Type 1 socket for those who want to charge via a public charging station or their own dedicated home charging box with Type 2 socket for mode 3 charging. Charging power up to 3.6KW.

Silver-plated connections ensure good contact and long service life. Length 7M. Equipped with a dust cover to protect against dust, dirt and moisture during storage.
The cable is made of TPE material, which provides good resistance to oil, abrasion and UV light. The cable is also flexible in the cold.

Cars with Type 1 socket include the Mitsubishi Outlander, for example.

The charging of the car is monitored through bidirectional communication between the car and the charger. When the cable is plugged into the car, a self-test is performed to ensure that the cable is correctly connected and that the car is ready to receive power before charging begins and the cable is energized. After charging, remove the charging cable from the car side first to disconnect it from the charger.

The cable must not be repaired or spliced as this can affect its safety and function.

• Certification: TUV 2 PfG 1908
• Cable: EV07EE-H, 3G2.5mm²+1x0.5mm²
• Rating: IP66
• Weight: 1.9KG
• Operating temperature: -30°C - +50°C
• 3-year warranty
