Patch panel 6xRJ12, 2x screw terminals
Patch panel that can be used with all 1wire products that have an RJ12 connector.
The patch panel has 6 RJ12 jacks and 2 screw terminals for GND, DQ, and +5V.
The RJ12 connectors are wired 1-1, 2-2, 3-3, 4-4, 5-5...
Läs mer
Liknande produkter
![Counter for connection to 1-wire network [Version 2.1]](https://d3dnwnveix5428.cloudfront.net/eyJrZXkiOiJzdG9yZV8xNGVhYjg2NC0yNGJmLTRjMTUtOTQ0Ni1jMjIyNTg2ZmZmMmZcL2ltYWdlc1wvNFJ1WG9IWFBmQjBDbEdtMTc2MTA1MzgwNC5qcGVnIiwiZWRpdHMiOnsicmVzaXplIjp7IndpZHRoIjo0MDAsImhlaWdodCI6NDAwLCJmaXQiOiJpbnNpZGUifX19 "Counter for connection to 1-wire network [Version 2.1]")
![R-pi i2c 1wire expansion module [v1.1]](https://d3dnwnveix5428.cloudfront.net/eyJrZXkiOiJzdG9yZV8xNGVhYjg2NC0yNGJmLTRjMTUtOTQ0Ni1jMjIyNTg2ZmZmMmZcL2ltYWdlc1wvM29SYms3V0VUR2VRakpiMTc2MTA1Mzg2OC5qcGVnIiwiZWRpdHMiOnsicmVzaXplIjp7IndpZHRoIjo0MDAsImhlaWdodCI6NDAwLCJmaXQiOiJpbnNpZGUifX19 "R-pi i2c 1wire expansion module [v1.1]")
Beskrivning av Patch panel 6xRJ12, 2x screw terminals
Patch panel that can be used with all 1wire products that have an RJ12 connector.

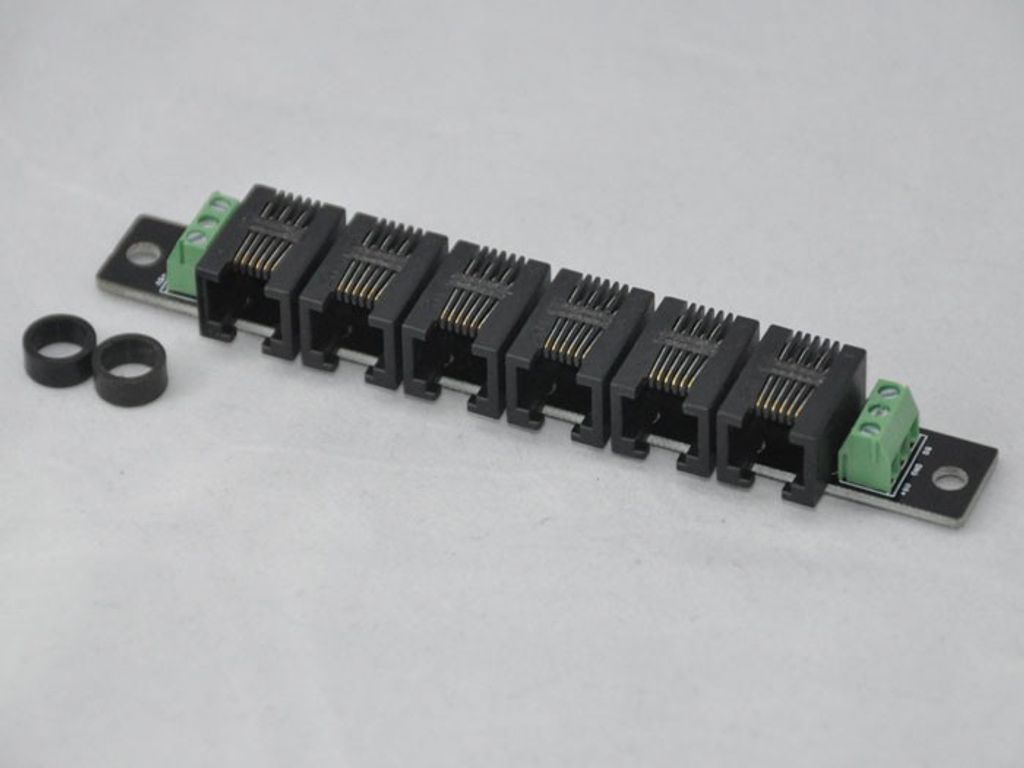

The patch panel has 6 RJ12 female connectors and 2 screw terminals for GND, DQ, and +5V.
The RJ12 connectors are wired 1-1, 2-2, 3-3, 4-4, 5-5, 6-6.
The screw terminals are connected as follows:
- GND to Pin 2 & 4 on the RJ12 connectors.
- +5V to Pin 1 on the RJ12 connectors.
- DQ to Pin 3 on the RJ12 connectors.
2 plastic spacers are included for easy mounting of the panel.
Size including connectors: (WxDxH) 118x18x15mm.
Distance between screw holes: 110mm.
Please note that you should aim for short branches if your network is over approximately 50m. Therefore, this panel is best suited as a junction point for short networks or as a junction point for sensors with cables of a few meters.
