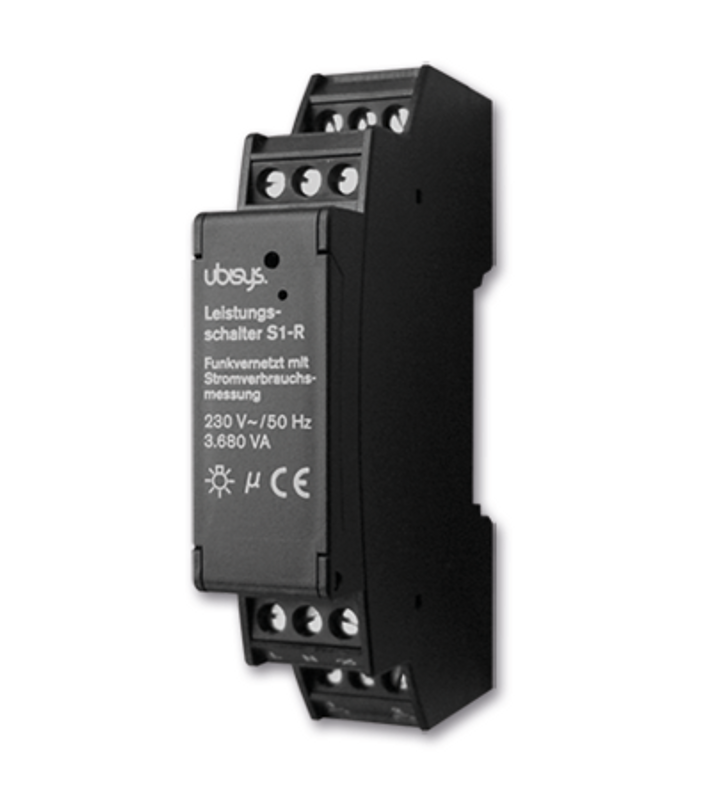

Power switch S1-R
Universal power switch S1-R - Wireless with integrated power consumption metering
This universal switching actuator allows you to switch any electrical consumer/end device with a constant power draw of up 3680VA — corresponding to a current of 16A at 230V. The actual switching is done by a bistable relais that only draws power when switched and also happens to be extraordinarily reliable and durable.
Läs mer
Beskrivning av Power switch S1-R
- Universal power switch S1-R - Wireless with integrated power consumption metering
This universal switching actuator allows you to switch any electrical consumer/end device with a constant power draw of up 3680VA — corresponding to a current of 16A at 230V. The actual switching is done by a bistable relais that only draws power when switched and also happens to be extraordinarily reliable and durable.
Integrated power consumption metering: This ubisys component from our smart home program allows you to register the actual power requirements of the attached end devices. It will show you exactly how much any of the end devices in your home consumed at any given time.
This component has one connection for end devices (output, load) and two connections for operating elements (switch or push-button). Push-buttons can also be set up to regulate a group of lamps or even activate scenarios.
Invisible: The power switch S1-R is to be installed in the control box of the sub-distribution on a DIN rail. A flush-mount version for the installation behind a light switch or a wall or ceiling outlet is also available.
The wireless components used in the smart home system by ubisys are based on the international standards IEEE 802.15.4 and ZigBee. This guarantees long term availability of all components thus protecting your investment.
Due to the resilient and innovative radio controlled technology there are no special skills needed when installed. This solution not only makes it ideal for new buildings but also for redevelopments and renovations. Additional components can be added and perfectly integrated into your smart home by and by. This leaves the decision when and how extensively you want to expand your system entirely up to you.
And with the Over-the-Air (OTA) firmware upgrade this component — as well as all other smart home components — will always stay up to date. This makes you well prepared for the future „Smart Grid”.

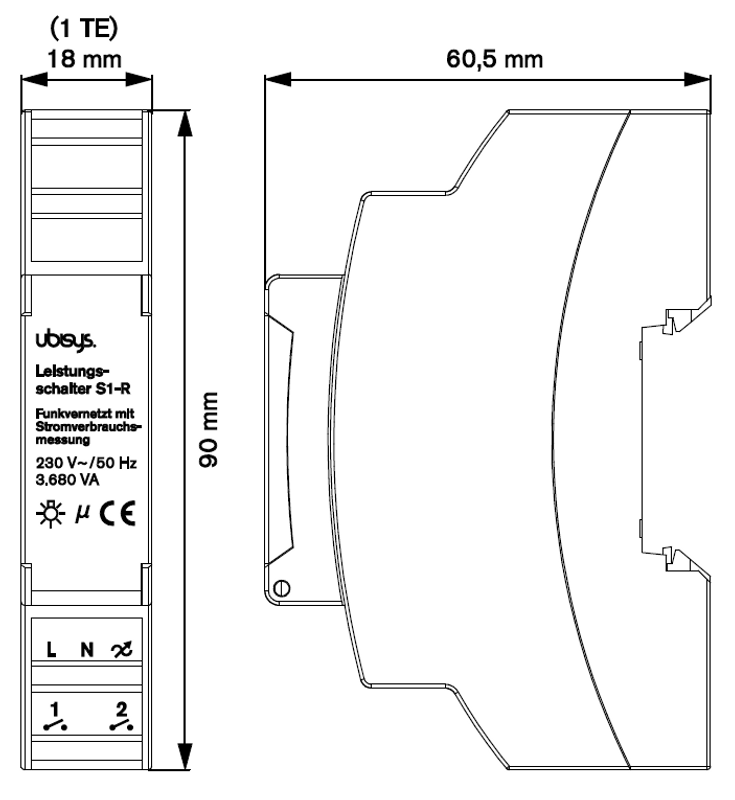

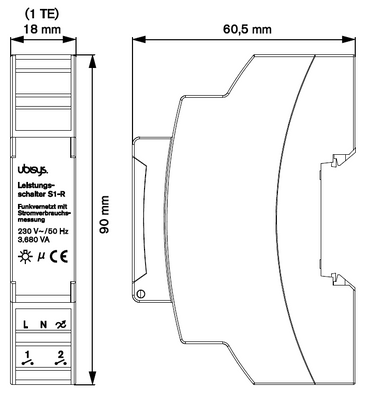

| Dimensioner | 90x60,5x18mm |
| Max effekt (W) | 3680 |
| Radioteknik / Protokoll | ZigBee |
| Spänning | 230V AC 50Hz |
| Typ av montering | Inbyggnad |
| Z-Wave Plus | Nej |
| Visa Hemautomation-varning | Ja |
| Works with Hue Bridge | Ja |
| Talks to Homey | Ja |
