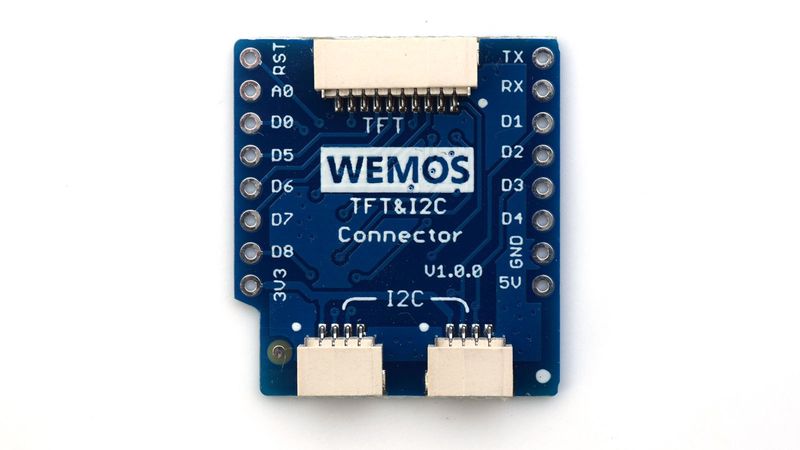

TFT I2C Connector Shield for WEMOS D1 mini 1xTFT and 2xI2C Connector

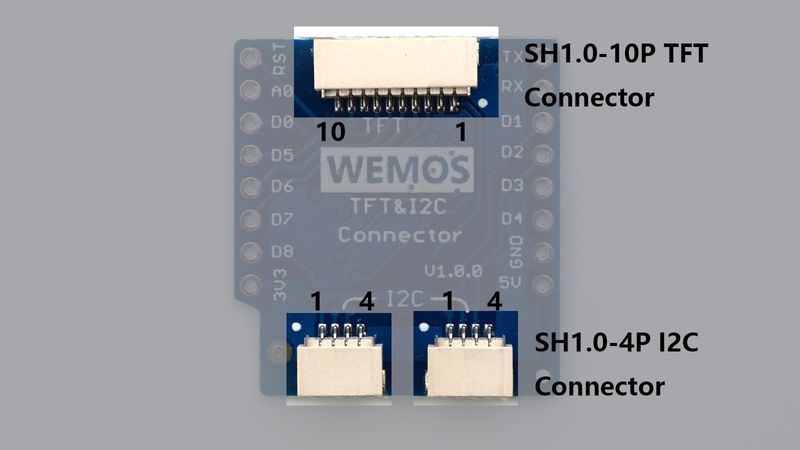

TFT Connector

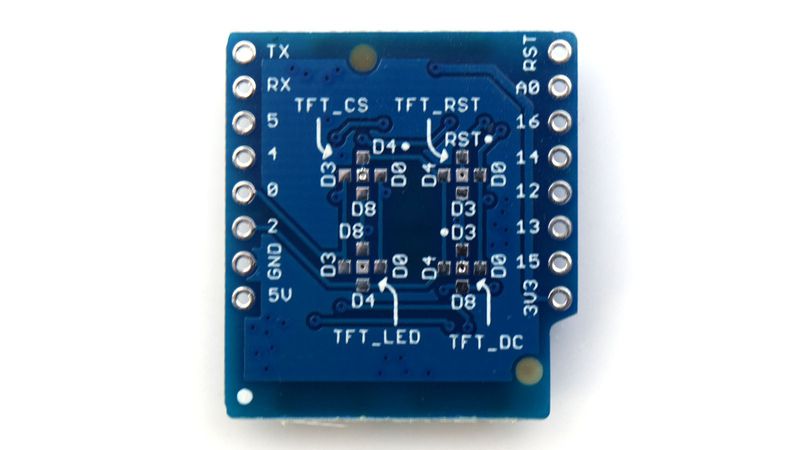

1 TFT_LED Backlight control pin, default: NC
2 GND
3 TFT_RST RESET pin, default: RST
4 TFT_DC Register select pin, default: D3 (IO0)
5 MOSI D7 (IO13)
6 MISO D6 (IO12)
7 SCK D5 (IO14)
8 3V3
9 TFT_CS Select pin, default: D4 (IO2)
10 NC

I2C Connector
1 3V3
2 SCL D1 (IO5)
3 SDA D2 (IO4)
4 GND
