USB Charger 2 x USB-C PD 40W GaN

LogiLink Compact Dual USB-C PD Charger at 40W with GaN Technology

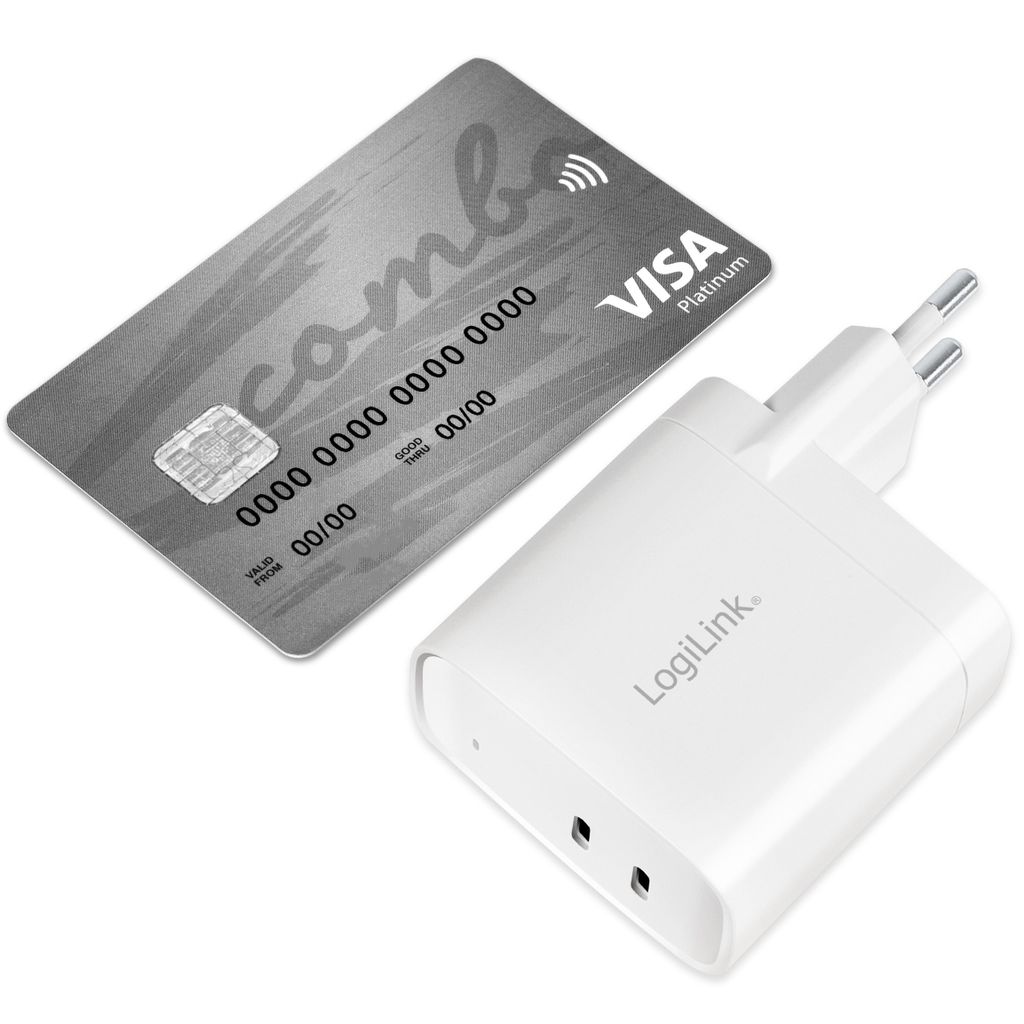

Highly efficient USB-C wall charger with GaN technology for fast charging of smartphones, tablets, etc. The compact size makes it easy to carry everywhere.

Built-in GaN Technology
By using gallium nitride (GaN) instead of silicon for circuit manufacturing, higher performance in the form of faster charging and higher efficiency is achieved, as well as smaller chargers in size.

Advanced USB-C Power Delivery
With an output of 48W, it is possible to charge a variety of devices. Check what output power (W) the connected device requires on the charger.

PPS Charging
PA0282 supports PPS charging (Programmable Power Supply) and real-time output power adjustment depending on the device's charging status, delivering maximum power.

Proper use of the PD function can only be guaranteed when combined with certified USB cables with E-Mark chipset.

Max Power During Charging:
USB-C 1: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W)
USB-C 2: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W)
PPS: 3.3–11 V/1.8 A
Max. total output power: 40W

Specifications
- Connection: 2x USB-C port
- Supports PPS (Programmable Power Supply) charging and real-time output power adjustment depending on the device's charging status, delivering maximum power
- Conducts higher voltages than silicon-based chargers with better heat dissipation
- Input: 230 V AC, 50/60 Hz 1 A
- Output USB-C1: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W), USB-C2: 5 V/3 A (15 W), 9 V/2.22 A (19.98 W), 12 V/1.67 A (20 W)
- PPS: 3.3–11 V/1.8 A
- Max. total output power: 40W
- Protection against: Overcurrent, overvoltage, overheating, and short circuit
- Compatible with most devices like smartphones, tablets, and more

Color: White
Dimensions: 5.5 x 3.59 x 9.25 cm
