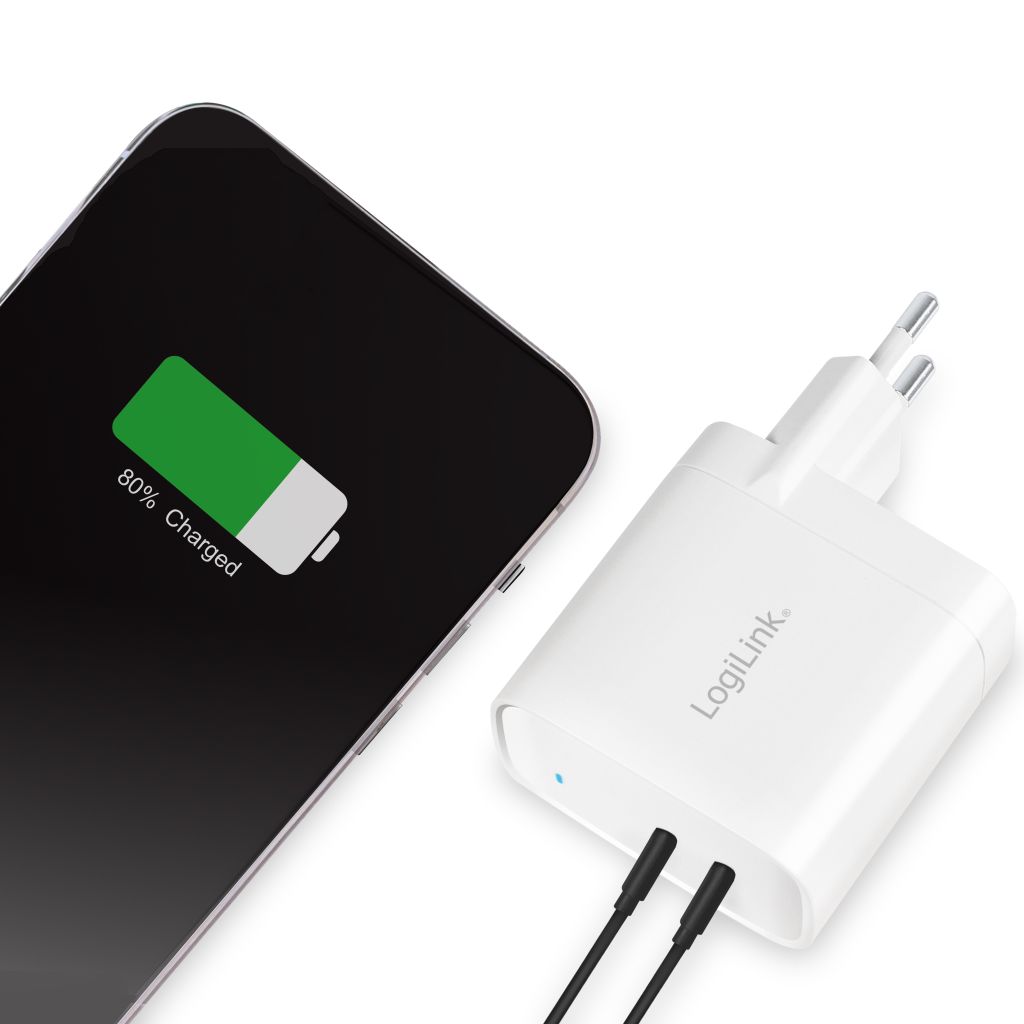

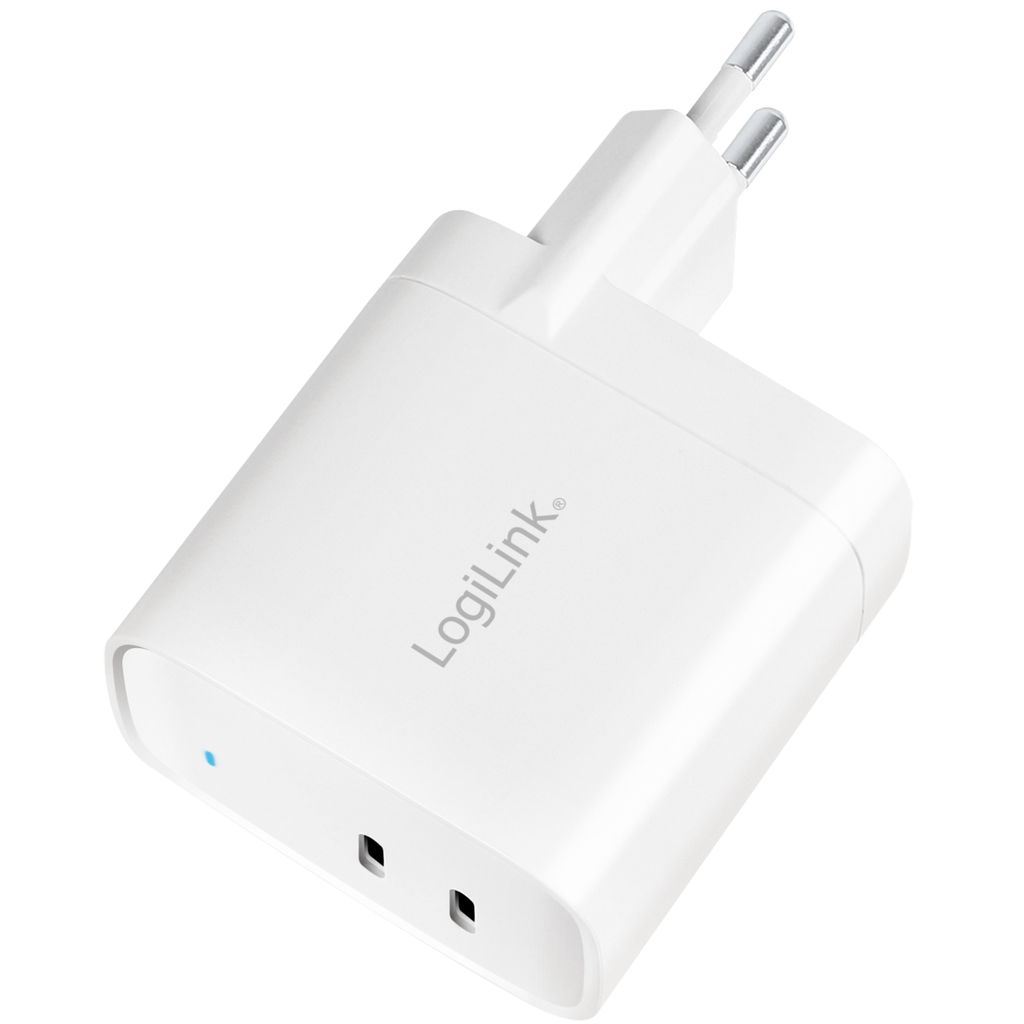

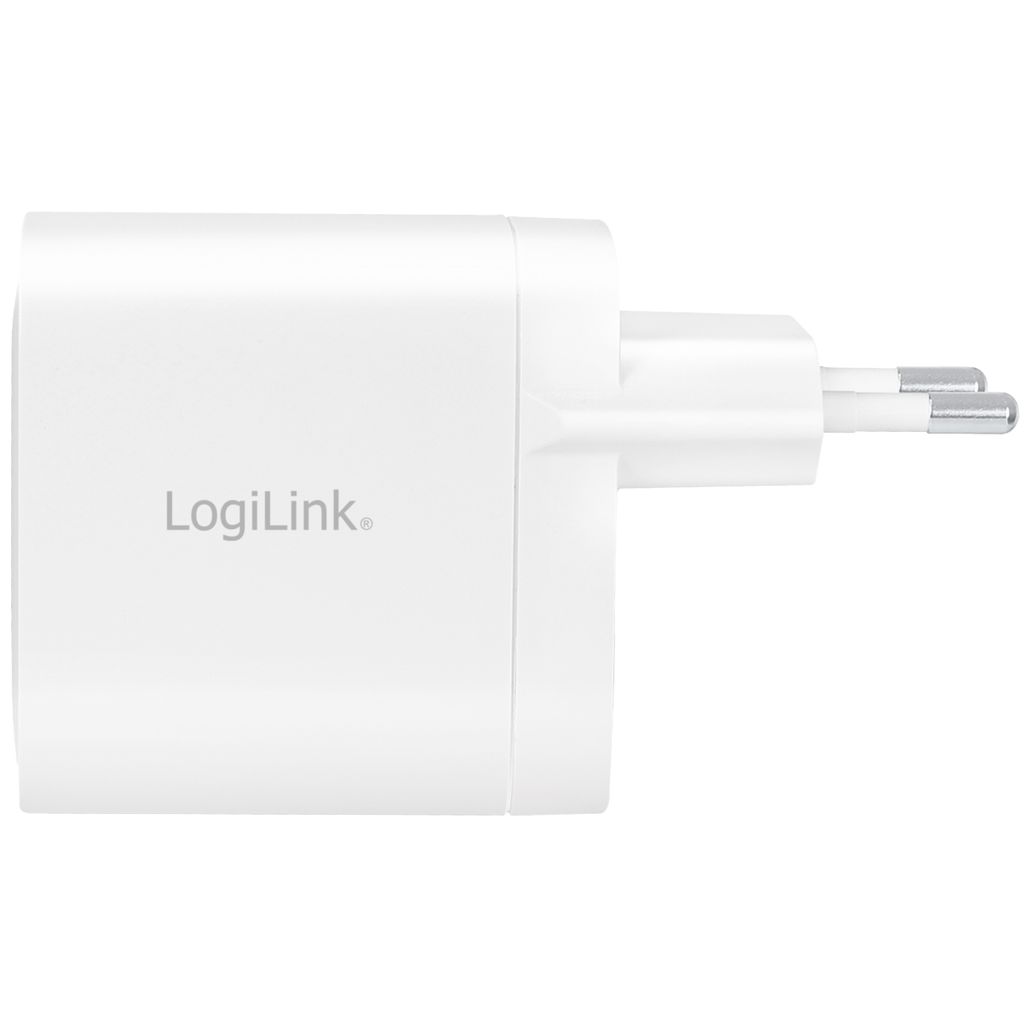

USB Charger 2 x USB-C PD 65W GaN

LogiLink Compact dual USB-C PD charger with 60W GaN technology

Highly efficient USB-C wall charger with GaN technology for fast charging of smartphones, tablets, etc.. The compact size makes it easy to carry anywhere.

Built-in GaN technology
By using gallium nitride (GaN) instead of silicon for circuit manufacturing, you get higher performance in the form of faster charging and higher efficiency, as well as smaller chargers in size.

Advanced USB-C Power Delivery
With an output of 60W, you can charge a variety of devices, from laptops to smartphones.
Check what output power (W) the connected device requires on the charger.

PPS charging
PA0283 supports PPS charging (Programmable Power Supply) and real-time adjustment of output power, depending on the device's charging status, delivering maximum power.

Proper use of the PD function can only be guaranteed in combination with certified USB cables with E-Mark chipset.

Max power during charging:
USB-C 1: 5 V/3 A (15 W), 9 V/3 A (27 W), 12 V/3 A (36 W), 15 V/3 A (45 W), 20 V/3.25 A (65 W)
USB-C 2: 5 V/3 A (15 W), 9 V/3 A (27 W), 12 V/3 A (36 W), 15 V/3 A (45 W), 20 V/3.25 A (65 W)
PPS: 3.3-11 V/5 A
Max. total output power: 65 W

Specifications
- Connection: 2x USB-C port
- Supports PPS (Programmable Power Supply) charging and real-time adjustment of output power, depending on the device's charging status, delivering maximum power
- Conveys higher voltages than silicon-based chargers with better heat dissipation
- Input: 230 V AC, 50/60 Hz 2 A
- Output USB-C 1: 5 V/3 A (15 W), 9 V/3 A (27 W), 12 V/3 A (36 W), 15 V/3 A (45 W), 20 V/3.25 A (65 W), USB-C 2: 5 V/3 A (15 W), 9 V/3 A (27 W), 12 V/3 A (36 W), 15 V/3 A (45 W), 20 V/3.25 A (65 W)
- PPS: 3.3-11 V/5 A
- Max. total output power: 65W
- Protection against: Overcurrent, overvoltage, overheating, and short circuit
- Compatible with most devices such as smartphones, tablets, and more
- Operating temperature: -10-40 ºC
- Storage temperature: -20-80 ºC

Color: White
Dimensions: 5.5 x 3.58 x 9.25 cm
