Produktbeskrivning

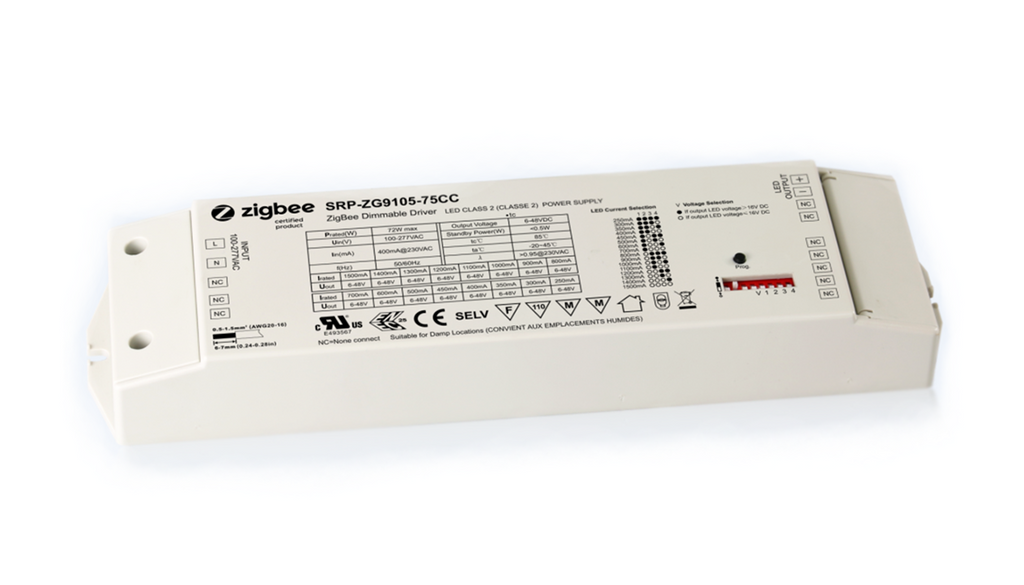

This is a 72W Dimmable LED Driver with 1 channel constant current output and adjustable current from 700mA to 1500mA using DIP switches on the driver. It is designed with 200-240VAC input. Power factor of the driver can be over 0,9 and efficiency is higher than 83%. It enables smooth and deep dimming to 0,1% without flickering and buzzing noise. The driver is designed with ZigBee control interface which can be included to ZigBee network and be controlled from your controller or hub interface. T
Key features:
- Dimmable LED Driver, Max output power 75W
- 1 channel constant current output and adjustable current from 700mA to 1500mA
- Class II Power Supply, fully isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0,9, Efficiency > 83%
- ZigBee control interface which can be included to ZigBee network and be controlled from your controller or hub interface
- To switch and dim single colour LED lighting
- Smooth and deep dimming to 0,1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
Please note:
Max output voltage is 55V. Due to this restriction you won't achive maximum effect in all configurations.
| Dimensioner | 64 x 244 x 32mm |
| Min Effekt (W) | 75 |
| Max effekt (W) | 75 |
| Spänning | 230V AC 50Hz |
| Typ av montering | Inbyggnad |
| Visa Hemautomation-varning | Ja |
