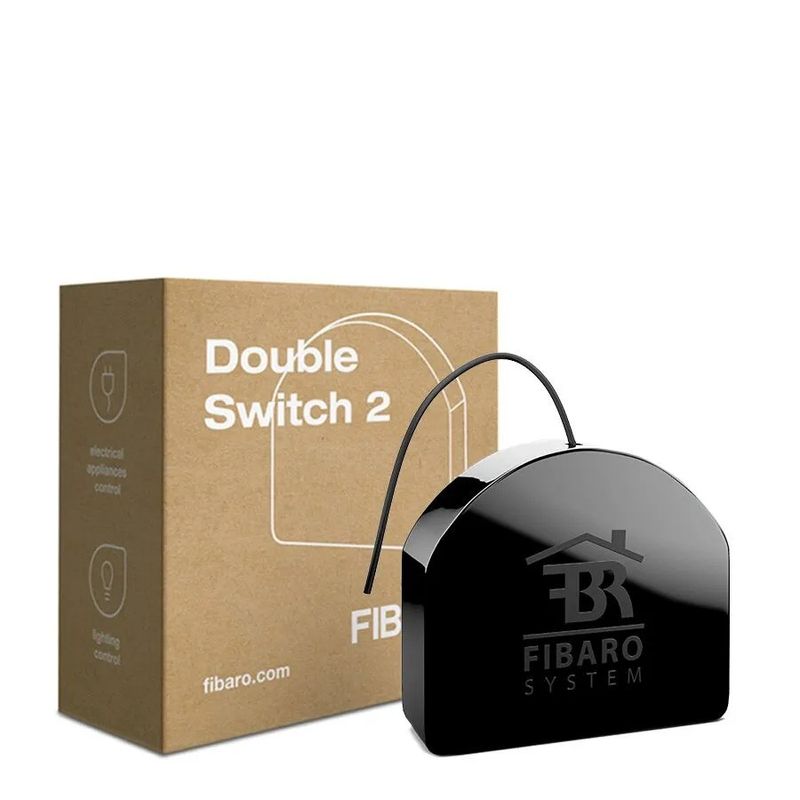

Built-in relay with 2 channels - Double Switch 2 (2x1.15kW)
Fibaro FGS-223 - GEN5 Insert Switch from Fibaro, max 10 A total!- Double built-in relay with energy measurement.- Remote power switch installed behind existing switch- Z-Wave- Control two power sources (e.g. lights) with Z-Wave system or manually on the physical wall switch
Läs mer
Produktbeskrivning
Fibaro's dual switch can be controlled via existing wall switches or through a Z-wave system (app, controller, scheduling, or sensors).
Function
Switch for two power sources on and off. Can control two lights in your home and schedule on/off times. Measures energy consumption and allows you to keep track of current consumption as well as accumulated consumption/instant power on both channels. The device has encrypted connection with AES-128. Different button presses can be set to mean different things through your Z-Wave hub.
Highly accurate energy measurement: +/-1.1% for powers above 5W
Protocol
Fibaro's dual switch uses Z-Wave to communicate with other devices and the controller. Z-Wave Plus certified.
Installation
Installed behind existing switch and works with both spring-loaded and regular wall switches.
| Dimensioner | 42.5 x 38.25 x 20.3 mm |
| Max effekt (W) | 1495 |
| Spänning | 230V AC 50Hz |
| Typ av montering | Inbyggnad |
| Radioteknik / Protokoll | Z-Wave |
| Kan anslutas utan nolla? | Nej |
| Visa Hemautomation-varning | Ja |
| Z-Wave Plus | Ja |
| Talks to Homey | Ja |
| Works with SmartThings | Ja |
| Talks to FutureHome | Ja |
| Potentialfritt / Dry Contacts | Nej |
