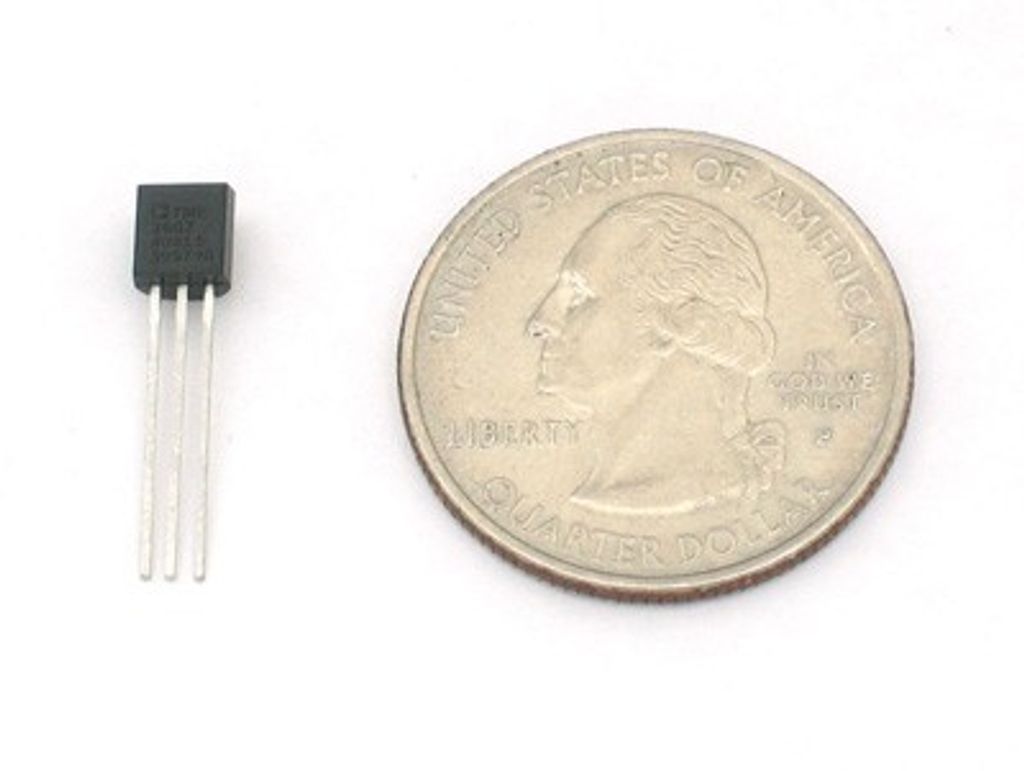

The TMP36 is an analog temperature sensor.
Large demand for low-power temperature sensors with a wide range has resulted in the development of a sensor that provides an analog voltage output directly proportional to the ambient temperature. To utilize this sensor, simply connect pin 1 (located on the left) to the power supply, which should be within a range of 2.7 to 5.5V. Then, connect pin 3 (located on the right) to the ground. Finally, connect pin 2 to the analog input on your device.
Läs mer
Liknande produkter
Beskrivning av The TMP36 is an analog temperature sensor.

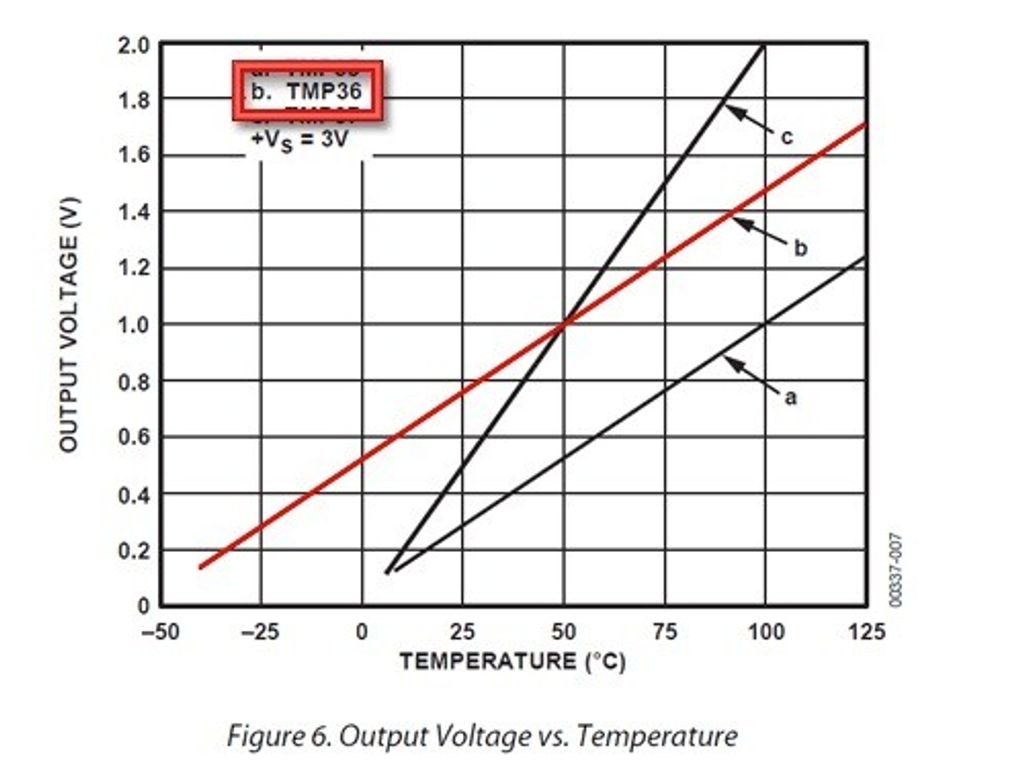

Wide range, low power temperature sensor outputs an analog voltage that is proportional to the ambient temperature. To use, connect pin 1 (left) to power (between 2.7 and 5.5V), pin 3 (right) to ground, and pin 2 to analog in on your microcontroller. The voltage out is 0V at -50°C and 1.75V at 125°C. You can easily calculate the temperature from the voltage in millivolts: **Temp °C = 100*(reading in V) - 50**.
See the webpage for datasheets and more information at [this link](http://www.analog.com/en/temperature-sensing-and-thermal-management/digital-temperature-sensors/tmp36/products/product.html). For a full tutorial with wiring diagrams, code examples, and project ideas, please read the [temp. sensor tutorial page](http://www.ladyada.net/learn/sensors/tmp36.html)!
